CT5

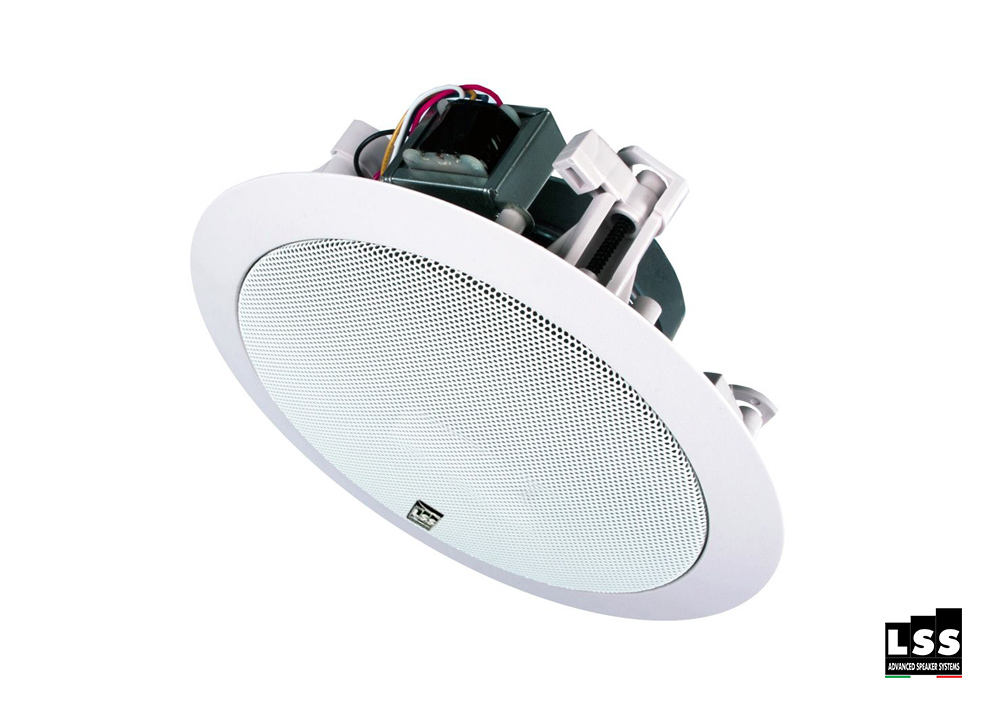

CT5 is a loudspeaker designed to vocal and music reproduction. The principal characteristics that countersign this product are: 130mm double cone driver with waterproofed membrane to exponential profile, low distorsion, extremely linear frequency response in vocal range, elevated dispersion, coated painted steel grille, easy fixing with soft of torsion in inox steel for ceiling. Uses a line transformer to three positions for fittings to constant voltage.
Description and Technical Data
Description

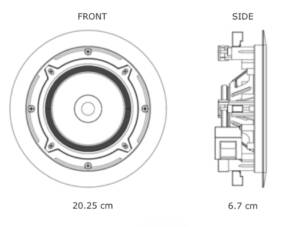

Technical Drawing
| Feature | Details |
|---|---|
| Type | FULL RANGE CEILING SPEAKER 1X5″DUAL CONE 20W AES WITH TRANSF. 5/10/20W |
| Frequency Response | ±5 dB 100 Hz ~ 20 KHz -10 dB 70 Hz |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 20 W |
| Peak | 80 W |
| Transformer Tapings 100V Line, W | 20 – 10 – 5 W |
| Sensitivity 1W/1m | (88 dB@ 1 Watt 1 m) |
| Max SPL (AES) calc | 101 dB |
| Nominal Dispersion (@ -6 dB) | 100° (H) x 100° (V) |
| Net Weight | 1.5 kg |
| Dimensions mm (±1 mm) (H x D) |
202 x 87 mm |
