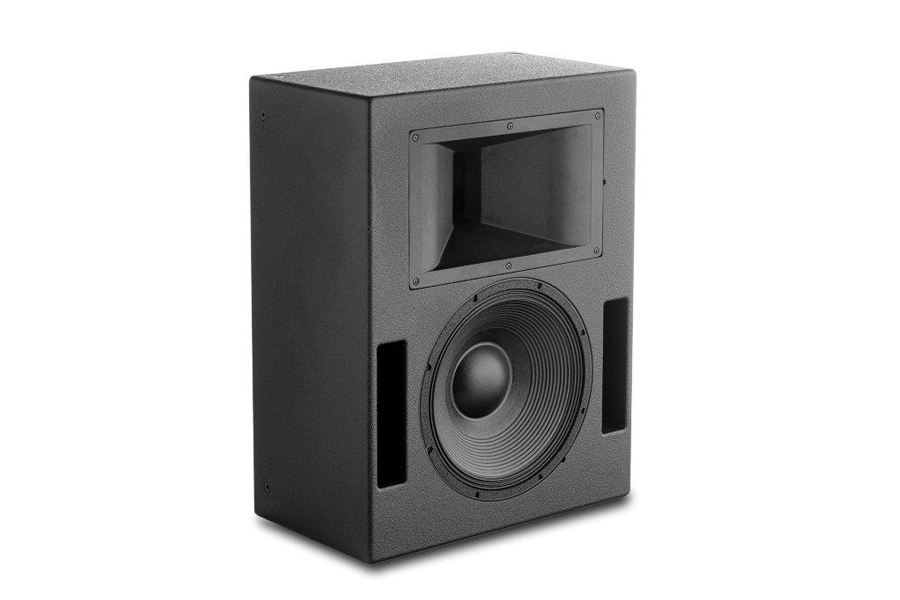

LCR15
LCR15 is a two-way high performance speaker systems especially designed for the screen channel in small/medium size cinema hall with very short space available between screen and rear wall.
Description and Technical Data
Description

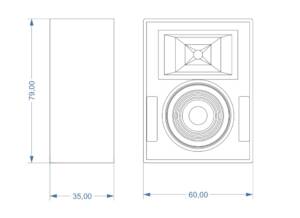

Technical Drawing
| Feature | Details |
|---|---|
| Type | MAIN CINEMA SYSTEM |
| Frequency Response | (-10 dB) 40 Hz- 20 Hz |
| Nominal Power Handling | LF 1000 W – HF 140 W – 8 Ohms |
| Nominal Impedance | 8 Ohm |
| Continuous Power Handling | LF 2000 W – HF 280 W |
| Coverage | Horizontal 80° • Vertical 80° |
| Sensitivity 1W/1m | (LF 97 dB S.P.L. HF 110 dB S.P.L.) |
| Crossover Frequency | from 500 Hz |
| Net Weight | 33 kg |
| Dimensions mm (±1 mm) (H x W x D) |
700 × 600 × 350mm |
DATA SHEET > LSS CINEMA SYSTEM
