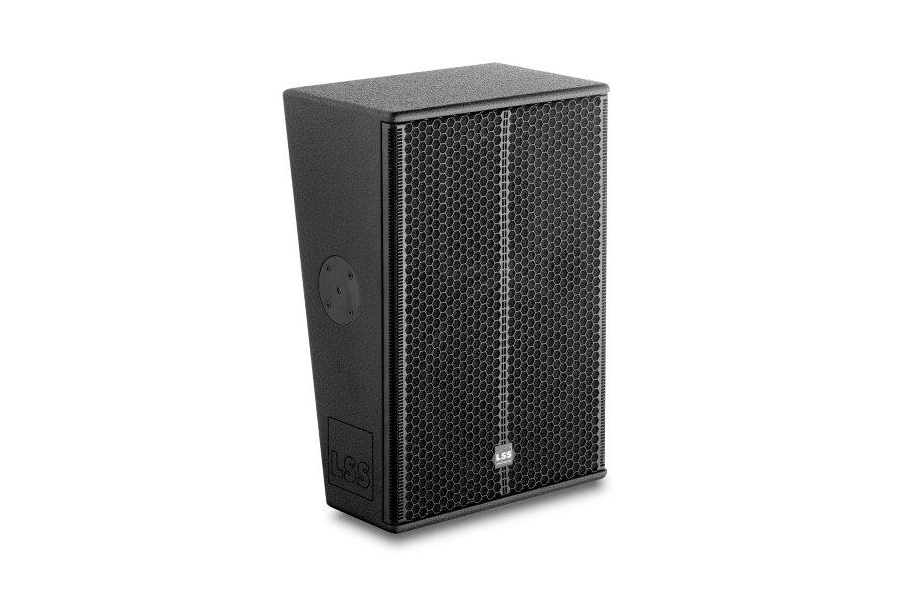

SR02
SR02 Cinema Surround Speaker offers high power handling with extended bass response dynamic range required for medium/large format cinemas and multi channel surround formats.
Description and Technical Data
Description

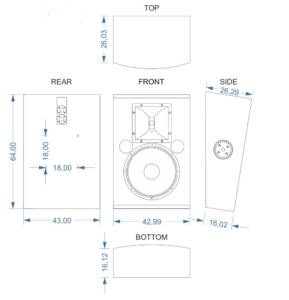

Technical Drawing
| Feature | Details |
|---|---|
| Type | SURROUND CINEMA SYSTEM 1600W 1X12″ + 1X1,4″ |
| Frequency Response | (-10 dB) 50 Hz- 20 kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 400 W |
| Peak | 1600 W |
| Sensitivity 1W/1m | ( 98 dB S.P.L.) |
| Coverage | Horizontal 90° • Vertical 40° |
| Net Weight | 18.5 kg |
| Dimensions mm (±1 mm) (H x W x D) |
640 × 430 × 290mm |
DATA SHEET > LSS CINEMA SYSTEM
