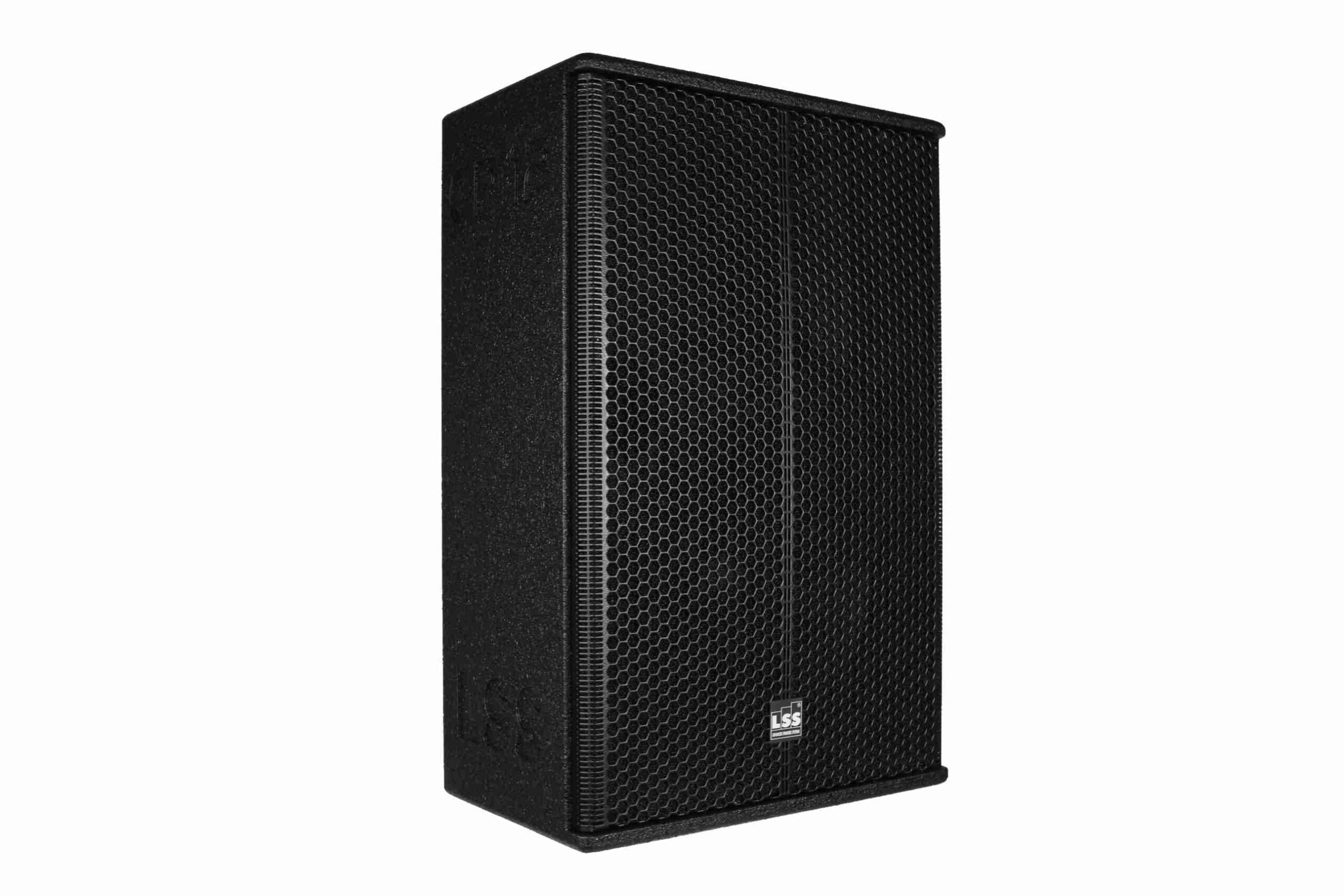

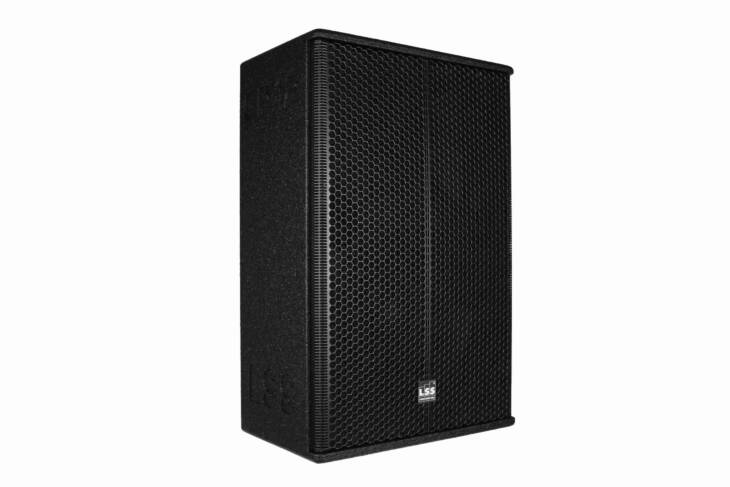

CP12
The CP12 is a multi-function loudspeaker very compact for mobile and fixed installation
applications, especially where high SPLs neededCP12 is ideally for main PA sytem alone or copled with a LSS subwoofer. Possyble also to use as a floor monitor.
Description and Technical Data
Description
Take a spin

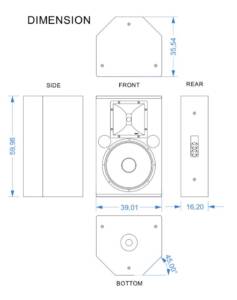

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT 2-WAY LOUDSPEAKER SYSTEM 380W AES 8 Ω 1X12″ |
| Frequency Response -10db | 60Hz – 22kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 380 W |
| Peak | 1075 W |
| Maximum SPL output calculated | (128 db SPL) |
| Nominal Dispersion | 90°x40° (HxV) |
| Net Weight | 19 kg |
| Dimensions mm (±1 mm) (H x W x D) |
600 x 390 x 354mm |
