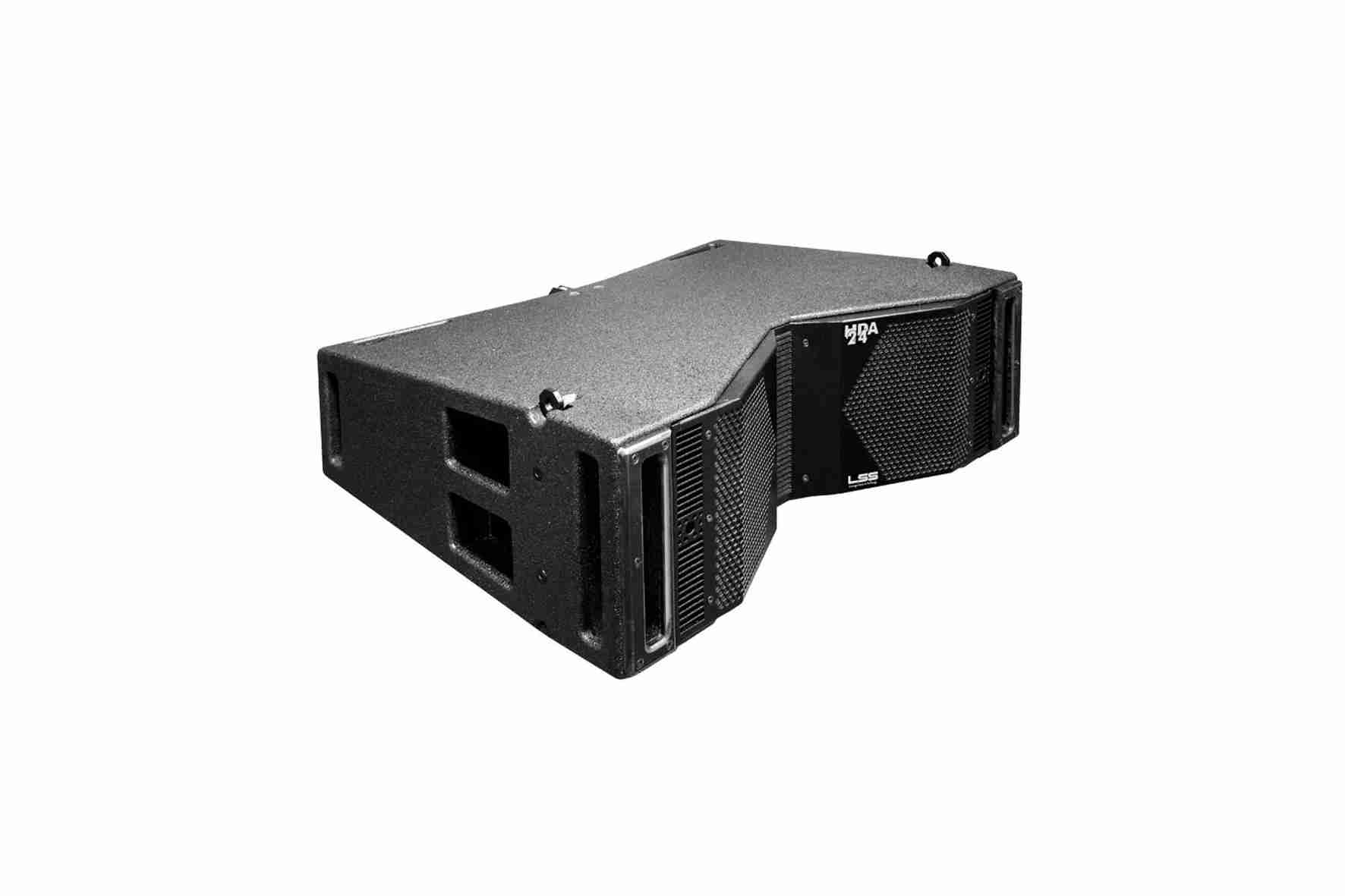

HDA24
HIGH DEFINITION LINE ARRAY SYSTEM 2 WAYS 600W+110W AES 16 Ω 2X8″+ 1X3″
HDA24 2-Way loudspeaker system provides high output, low distortion sound reinforcement for the entire range of pro audio applications. Powerful for festivals, arenas, theatres, corporate AV.
Description and Technical Data
Description
Take a spin

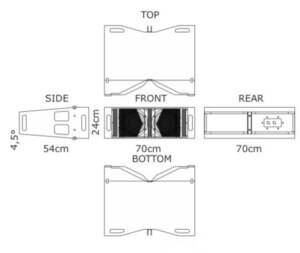

Technical Drawing
| Feature | Details |
|---|---|
| Type | HIGH DEFINITION LINE ARRAY SYSTEM 2 WAYS 600W+110W AES 16 Ω 2X8″+ 1X3″ |
| Frequency Response | ±3 dB 50 Hz ~ 18 KHz -10 dB 45 Hz |
| Nominal Impedance | LF 16 Ω- HF 16 Ω |
| Nominal Power Handling | LF 600 W – HF 110 W |
| Peak | LF 1600 W – HF 220 W |
| Sensitivity 1W/1m | (LF 96 dB- HF 103 dB @ 1 Watt 1 m) |
| Max SPL (AES) calc | LF 123 dB- HF 123 dB |
| Max SPL (PEAK) calc. | LF 128 dB- HF 126 dB |
| Nominal Dispersion (@ -6 dB) | 120° (H) x 9° (V) |
| Net Weight | 23 kg |
| Dimensions mm (±1 mm) (H x W x D) |
240 x 700 x 540mm |
2 versions:
HDA24P Passive Full-Range with internal crossover
HDA24 BI-AMP with external Digital Processor and External Amplifier
