PP4-10
HIGH DEFINITION LINE ARRAY SYSTEM 2 WAYS 600W+110W AES 16 Ω 2X8″+ 1X3″
PP4-10 is a columnar model line-array technology with the convenience of ultra compact portable PA’s.
Is ideal for sound reinforcement in A/V events, paging and background music. The small dimensions of system are ideally for portable use. Despite the ultra-low size PP4-10 surprises in the natural timbre sound.
Description and Technical Data
Description
Take a spin

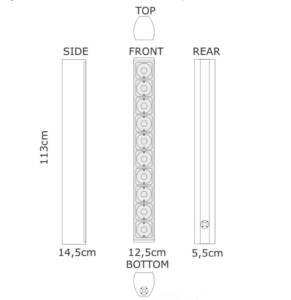

Technical Drawing
| Feature | Details |
|---|---|
| Type | COLUMNAR MINI ARRAY SYSTEM 600W AES 6 Ω 10X4″ WITH BAG AND BRACKET |
| Frequency Response | ±5 dB 120 Hz ~ 18 KHz -10 dB 100 Hz |
| Nominal Impedance | 6 Ohm |
| Nominal Power Handling | 600 W |
| Peak | 1500 W |
| Sensitivity 1W/1m | (99.5 dB@ 1 Watt 1 m) |
| Max SPL (AES) calc | 127 dB |
| Max SPL (PEAK) calc. | 131 dB |
| Nominal Dispersion (@ -6 dB) | 80° (H) x 20° (V) |
| Net Weight | 9.5 kg |
| Dimensions mm (±1 mm) (H x W x D) |
1130 x 125 x 144mm |
