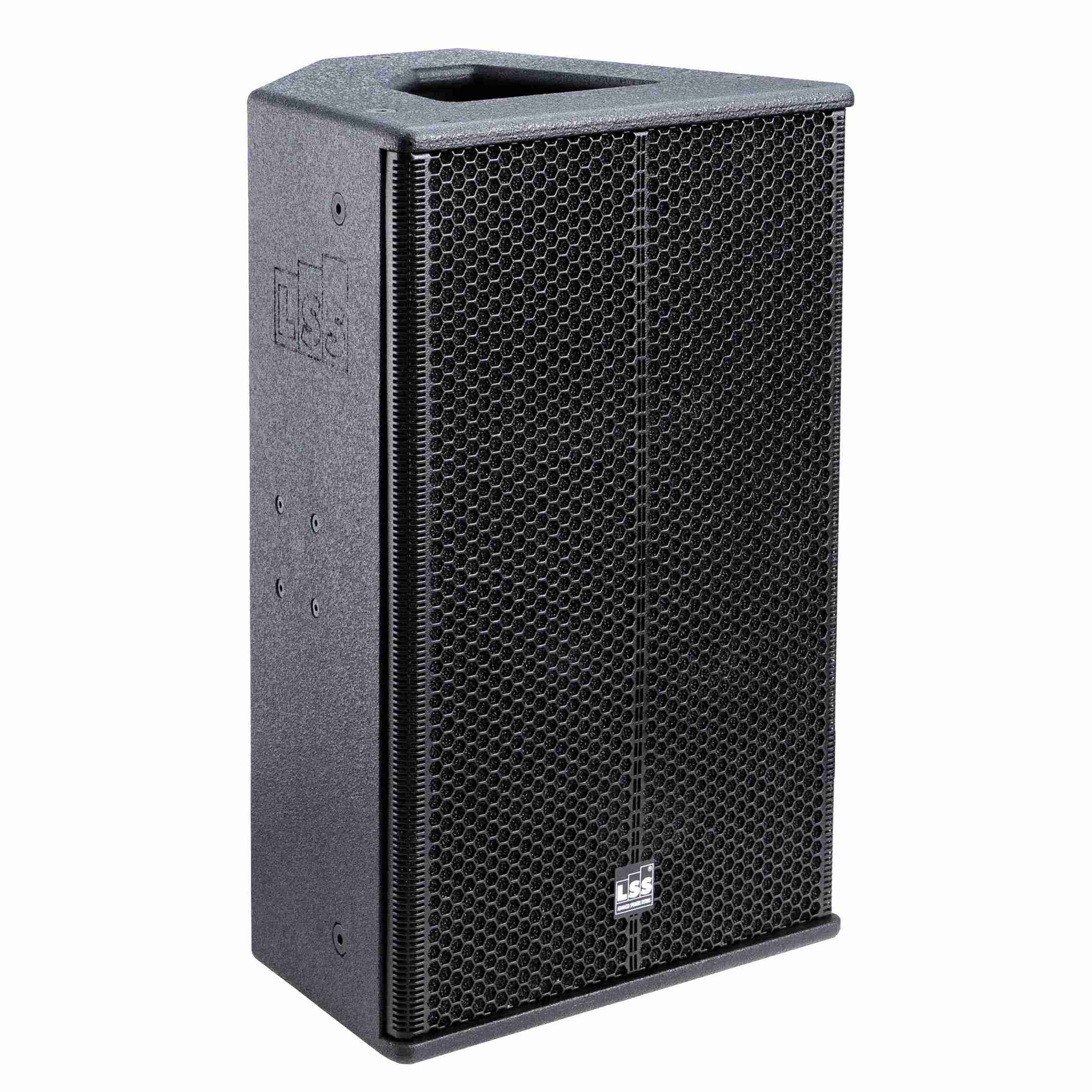

M 12
The Magma 12 is a multi-function loudspeaker very compact for mobile and fixed installation
applications, especially where high SPLs needed. Can be used as Main PA Systems, Monitor System, Delay and Stage fill.
Description and Technical Data
Description
COMPACT MULTIFUNCTION SYSTEM 2 WAYS 12″ 500W AES
Speaker Power Capability 500 W (AES) – 8 Ω
Frequency Response -10 dB 60 Hz – 22 kHz
Nominal Dispersion 90° x 40° (H x V)
Watts AES Continous 500 W/Peak 1200 W
Maximum SPL Output calculated 129 dB SPL
Net Weight 20.5 kg
