M 5
The Magma 5 is a multi-function very small loudspeaker for mobile and fixed installation applications, especially where high SPLs needed. Can be used as a mini floor monitor
Description and Technical Data
Description
Take a spin

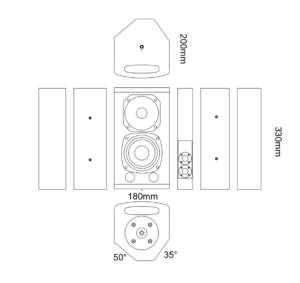

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT MULTIFUNCTION SYSTEM 2 WAYS 5″ 120W AES |
| Frequency Response -10db | 70Hz – 22kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 120 W |
| Peak | 250W |
| Maximum SPL output calculated | (118 db SPL) |
| Nominal Dispersion | 80°x80° (HxV) |
| Net Weight | 5.9kg |
| Dimensions mm (±1 mm) (H x W x D) |
330 x 180 x 200mm |
