M 6

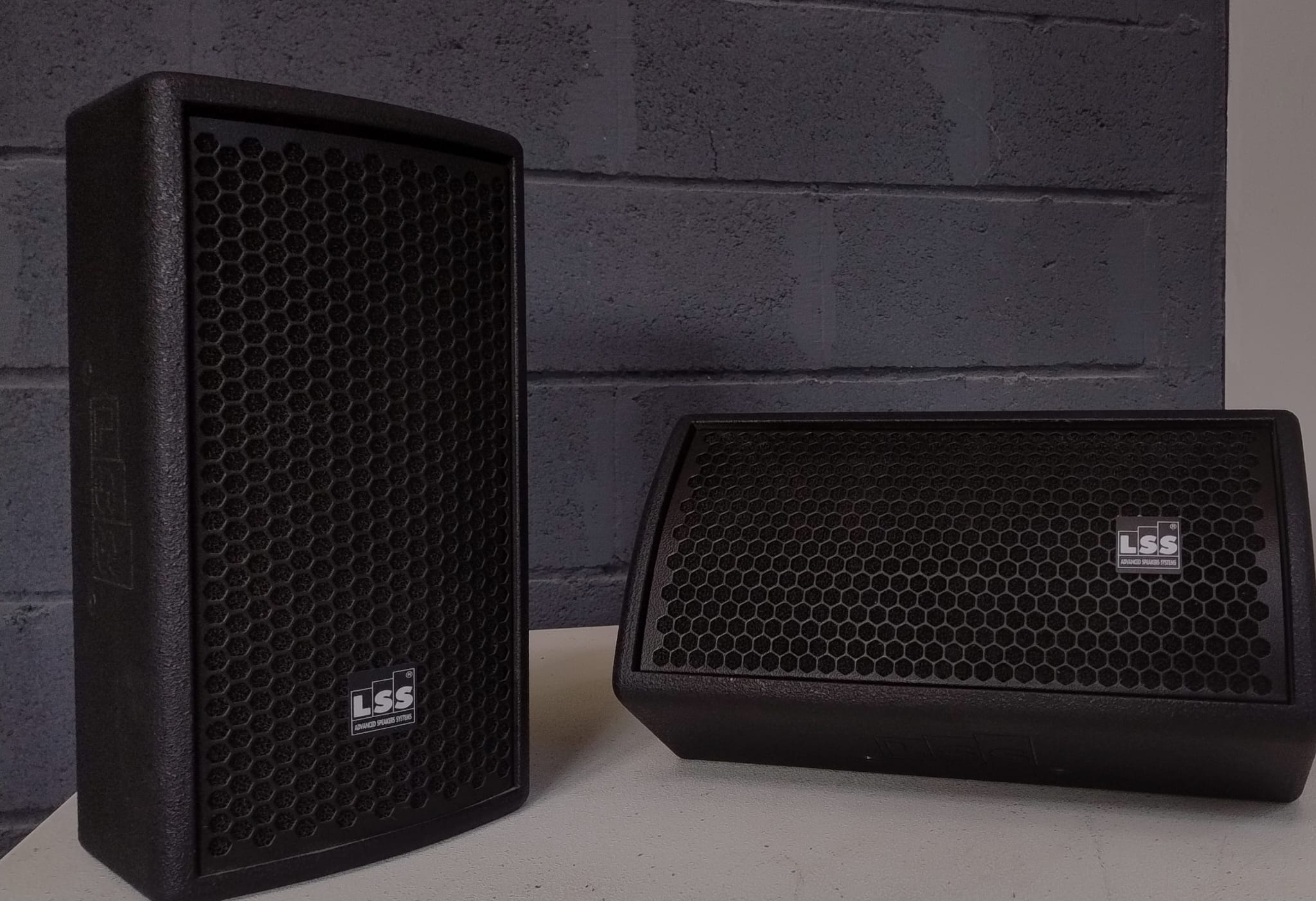

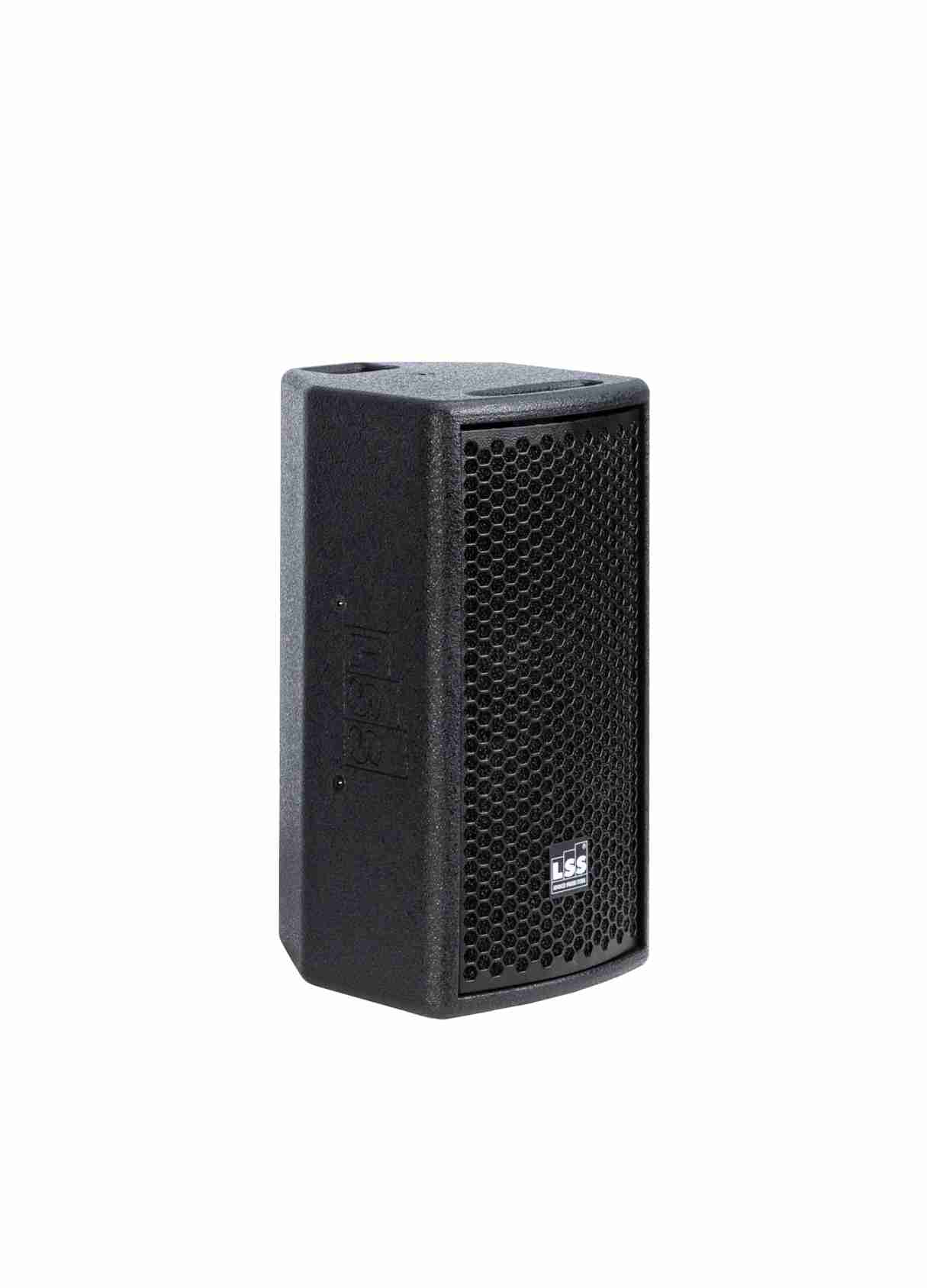

The Magma 6 is a multi-function very small loudspeaker for mobile and fixed installation applications, especially where high SPLs needed. Can be used as a mini floor monitor
Description and Technical Data
Description

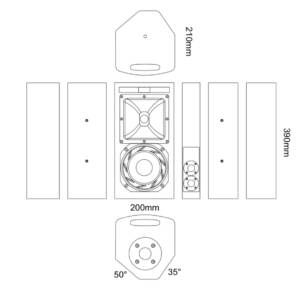

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT MULTIFUNCTION SYSTEM 2 WAYS 6″ 250W AES |
| Frequency Response -10db | 70Hz – 22kHz |
| Nominal Impedance | 16 Ohm |
| Nominal Power Handling | 250W |
| Peak | 575W |
| Maximum SPL output calculated | (121 db SPL) |
| Nominal Dispersion | 90°x40° (HxV) |
| Net Weight | 6.8kg |
| Dimensions mm (±1 mm) (H x W x D) |
390 x 200 x 210mm |
