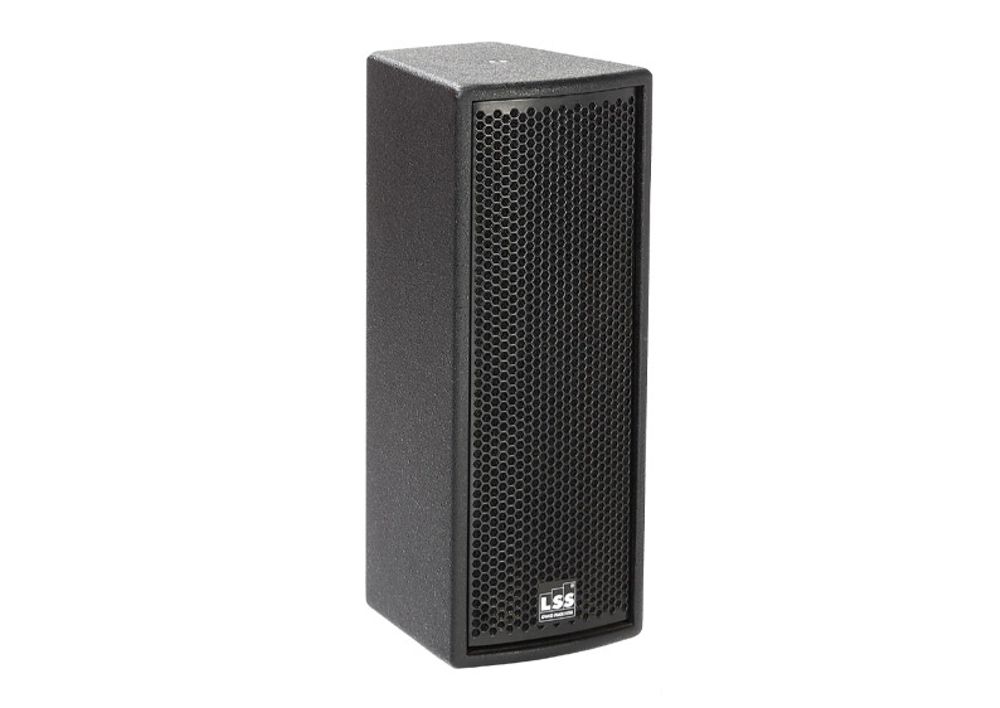

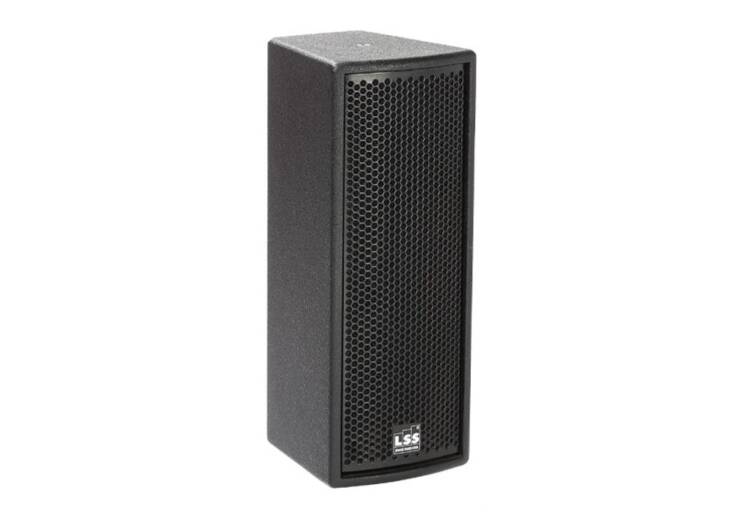

MIL130
MIL130 is a 2-way full range system in a compact trapezoidal enclosure, engineered for exceptional performance in the nearfield. Very effective as a fill/delay element in larger overall systems or for foreground/background music reproduction. It is also ideal for distributed systems.
Description and Technical Data
Description

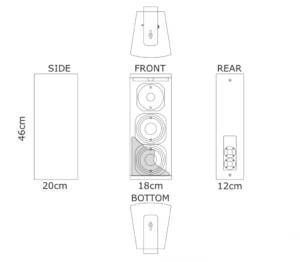

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT 2-WAY LOUDSPEAKER SYSTEM 200W AES 16 Ω 2X5″+1X1″ incl.bracket |
| Frequency Response | ±5 dB 70 Hz ~ 20 KHz -10 dB 60 Hz |
| Nominal Impedance | 16 Ohm |
| Nominal Power Handling | 200 W |
| Peak | 500 W |
| Sensitivity 1W/1m | (91 dB@ 1 Watt 1 m) |
| Max SPL (AES) calc | 114 dB |
| Max SPL (PEAK) calc. | 118 dB |
| Nominal Dispersion (@ -6 dB) | 80° (H) x 80° (V) |
| Net Weight | 8 kg |
| Dimensions mm (±1 mm) (H x W x D) |
460 x 180 x 200mm |
