R8

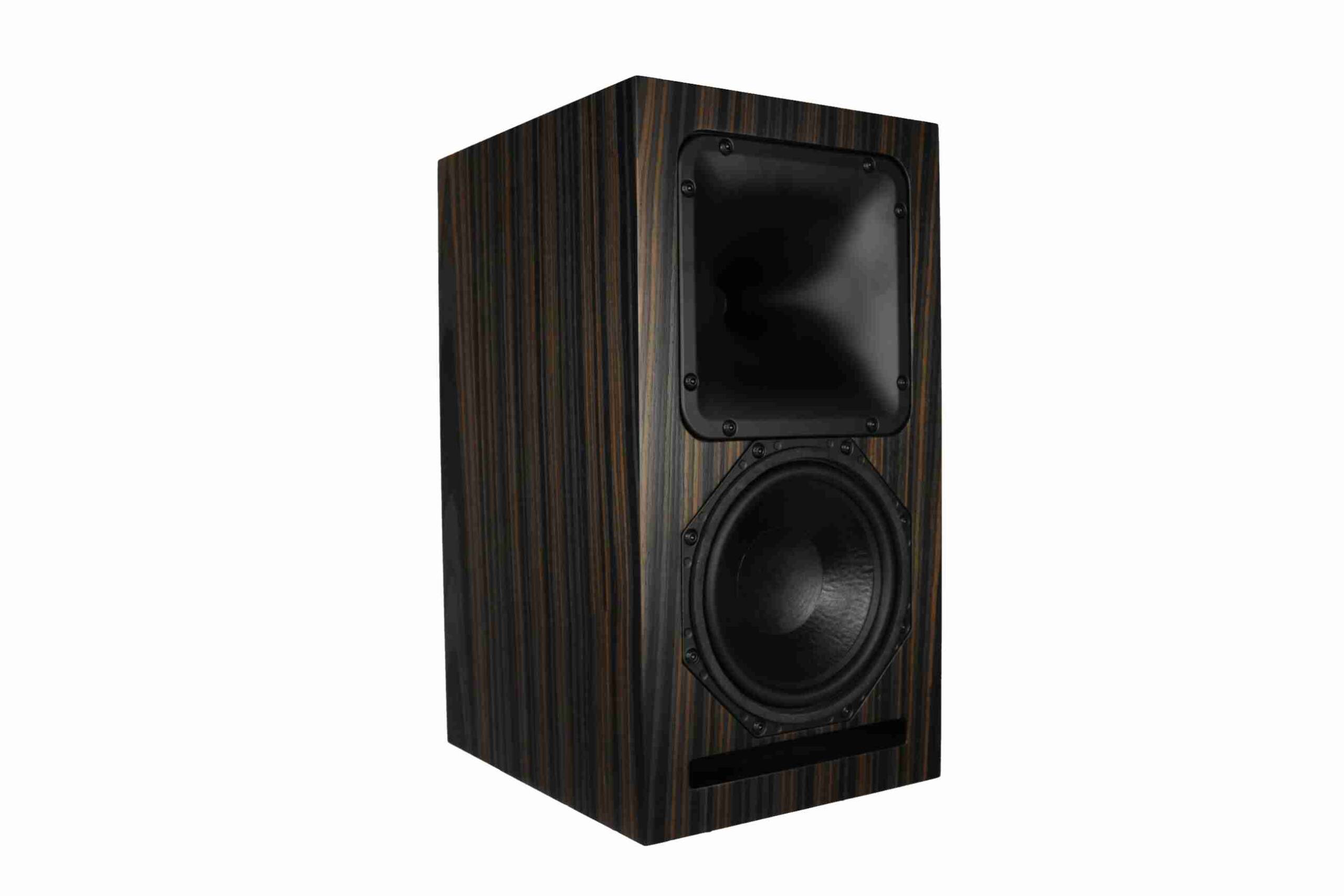

The R8 is a medium size near/mid field passive monitors. Designed for recording studios, broadcast suites and private studios.
The hand built specialy crossover network offers a very efficient and coerent phase passive network. T8 offers a
exceptional and accurate response like a sound stage along with the ability to produce a high SPL when required. Four
personalized setup avilable from Powersoft syStem amplifier.
Description and Technical Data
Description
Take a spin
Different variation
Technical Drawing
| Feature | Details |
|---|---|
| Type | REFERENCE MONITOR MID FIELD SYSTEMS 2-WAY |
| Frequency Response | (-10 dB) 35 Hz – 22 kHz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 330 W |
| Peak | 825 W |
| Sensitivity 1W/1m | ( 93 dB S.P.L.) |
| Coverage | Horizontal 60° • Vertical 40° |
| Net Weight | 19 kg |
| Dimensions mm (±1 mm) (H x W x D) |
510 × 275 × 330mm |
