SM1
SM1 is a precise loudspeaker for near-field sound monitoring. Ultra flat frequency response and physical phase alignment assure a precise preference for pro audio applications.
Description and Technical Data
Description
Take a spin

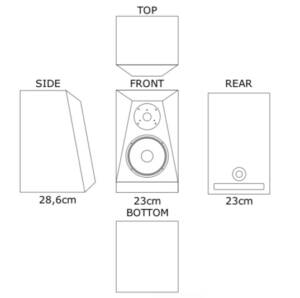

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT 2-WAY STUDIO MONITOR SYSTEM 150W AES 8Ω 1X6″ + 1X1,1″ |
| Frequency Response | +/-5 dB 50 Hz ~ 20 kHz -10 dB 45 Hz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 150 W |
| Peak | 600 W |
| Sensitivity 1W/1m | (90 dB@ 1 Watt 1 m) 112 dB Max SPL (AES) calc. 118 dB Max SPL (PEAK) calc. |
| Coverage | Horizontal 90° • Vertical 90° |
| Net Weight | 8.7 kg |
| Dimensions mm (±1 mm) (H x W x D) |
386 × 230 × 286mm |
