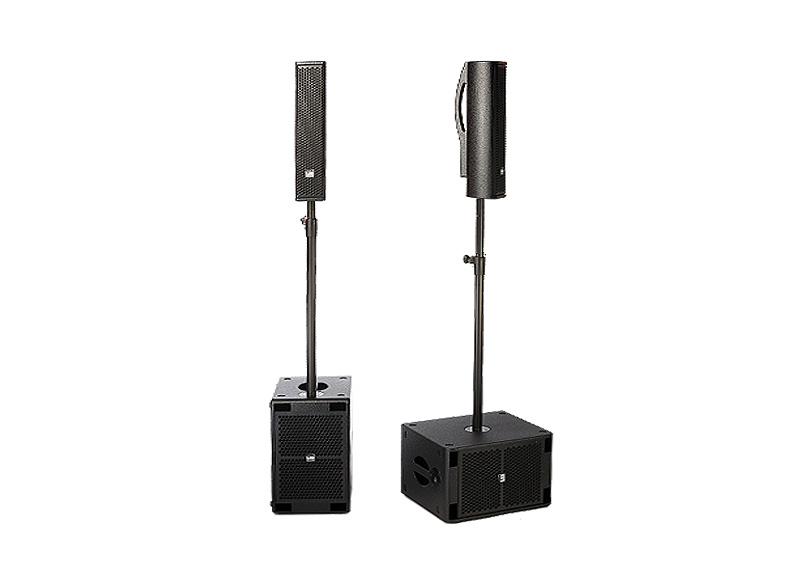

LT60
COMPACT SELF POWERED SYSTEM 2x700W
(kit included 2 SUB + 2 SAT + BAG + STAND + CABLE)

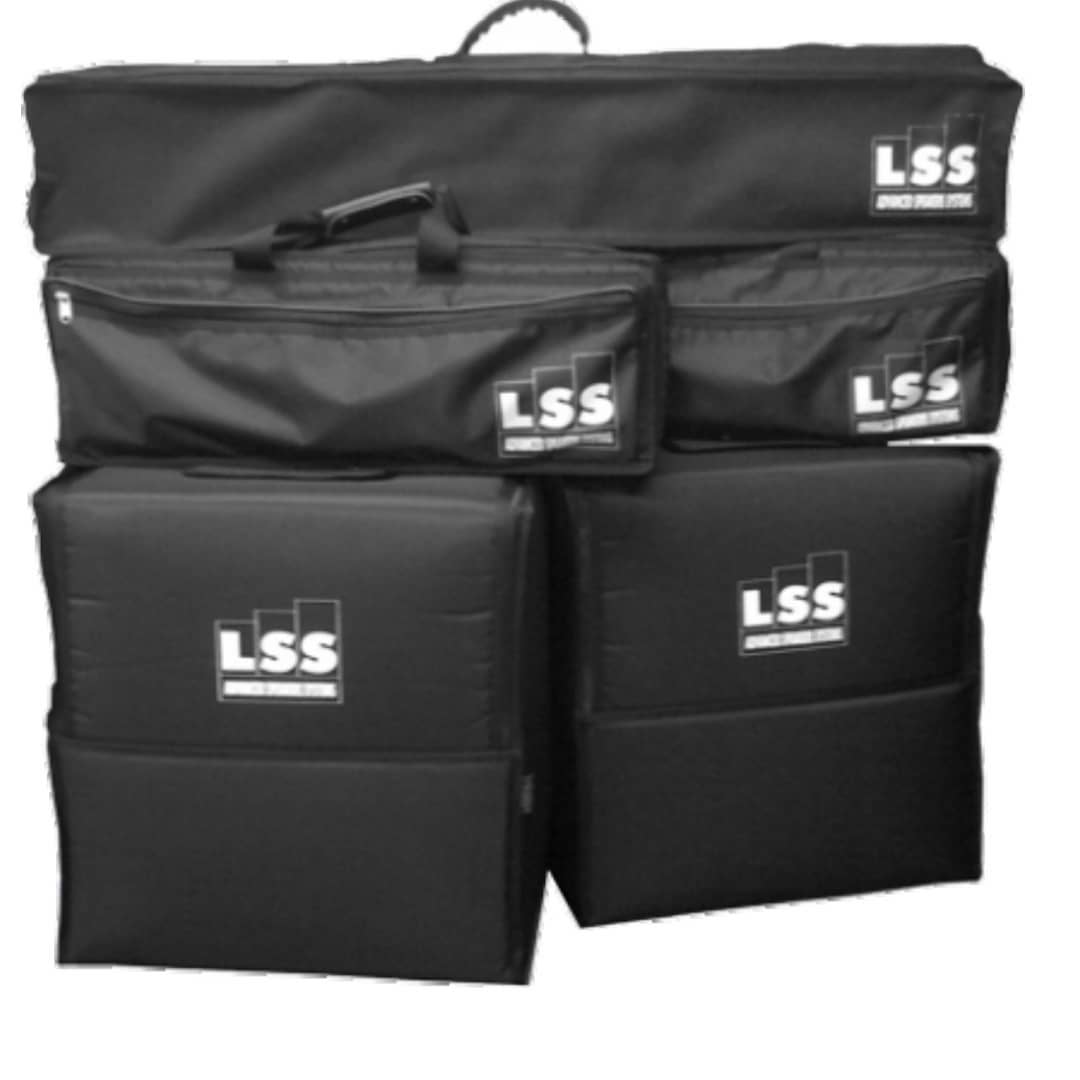

Quality innovation and versatility LT60 is the system developed by LSS for professional sound users. Self-powered system with digital module DSP, extreme ruggedness, easy of transport and use of professional components. Impact, natural sound and portability are the strengths of this system. LT60 is provided with wiring kit, soft cases for the transportation and adjustable rod for easy quick coupling to the sub.
Description and Technical Data
Description
Take a spin

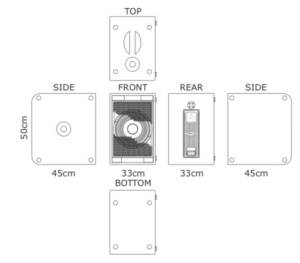

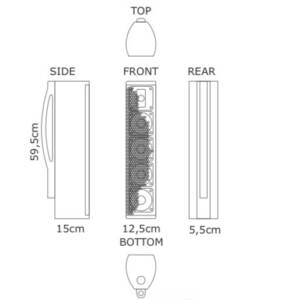

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT SELF POWERED SYSTEM 2x700W (kit included 2 SUB + 2 SAT + BAG + STAND + CABLE) |
| Frequency Response | (±5 dB 50 Hz ~ 120 Hz -10 dB 35 Hz SUB) (±5 dB 135 Hz ~ 20 KHz -5 dB 100 Hz SAT) |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | (350W SUB) (350W SAT) |
| Peak | (700 W SUB) (700 W SAT) |
| Sensitivity 1W/1m | (96 dB@ 1 Watt 1 m) |
| Max SPL (AES) calc | 121 dB |
| Max SPL (PEAK) calc. | 124 dB |
| Nominal Dispersion (@ -6 dB) | [360° SUB] [80° (H) x 25° (V) SAT] |
| Net Weight | (19 kg SUB) (5.3 kg SAT) |
| Dimensions mm (±1 mm) (H x W x D) |
(330 x 500 x 450mm SUB) (592x 125 x 150mm SAT) |
