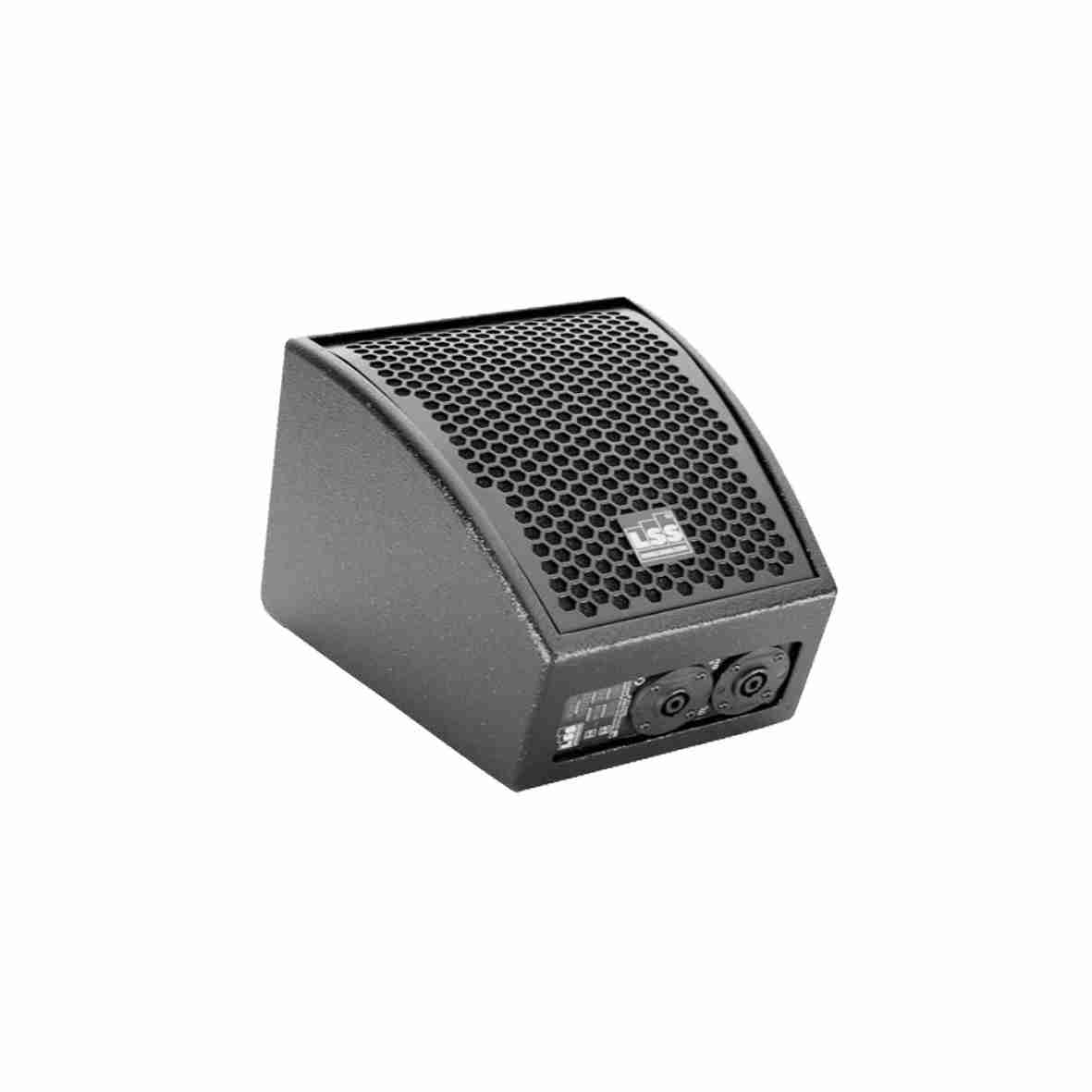

MM1
Its small size makes it ideal as a personal monitor in the most different applications. Surprising because of the pressure and the natural timbre it that can reproduce. Due to its extremely low profile and small size, fits easily next to any console. Every DJ, Sound Engineer, Performer or keyboard-player will have a faithful companion to share their best performances.
Description and Technical Data
Description
Take a spin

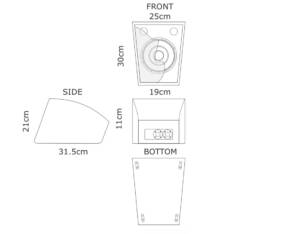

Technical Drawing
| Feature | Details |
|---|---|
| Type | ULTRA LOW PROFILE STAGE MON. SYS. COAX 2WAY 175W AES 8Ω 1X6,5″ |
| Frequency Response | +/-5 dB 80 Hz ~ 18 kHz -10 dB 60 Hz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 150 W |
| Peak | 400 W |
| Sensitivity 1W/1m | (92 dB@ 1 Watt 1 m) 114 dB Max SPL (AES) calc. 118 dB Max SPL (PEAK) calc. |
| Coverage | Horizontal 70° • Vertical 70° |
| Net Weight | 4 kg |
| Dimensions mm (±1 mm) (H x W x D) |
215 × 250 × 315mm |
