WM3
WM3 2-WAY loudspeaker system is ideal for stage
monitor applications high output vocal presence
and neutral balanced sound
Description and Technical Data
Description
Take a spin

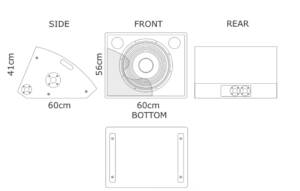

Technical Drawing
| Feature | Details |
|---|---|
| Type | LOW PROFILE STAGE MONITOR SYSTEM |
| Frequency Response | +/-5 dB 50 Hz ~ 18 kHz -10 dB 40 Hz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 600 W |
| Peak | 1800 W |
| Sensitivity 1W/1m | (98 dB@ 1 Watt 1 m) 114 dB Max SPL (AES) calc. 118 dB Max SPL (PEAK) calc. |
| Coverage | Horizontal 60° • Vertical 40° |
| Net Weight | 23 kg |
| Dimensions mm (±1 mm) (H x W x D) |
410 × 600 × 600mm |
