SUBDRIVE12
SUBDRIVE12 is a reflex sub woofer designed to reinforce the extremely low range frequency of small portable equipment in Live Music or small installations in disco Bar Pub etc.The Cabinet extremely compact makes it easily transportable and versatile for portable applications. SUBDRIVE12 surprise for his big punch and high dynamic response and the extreme low frequency.
Description and Technical Data
Description
Take a spin

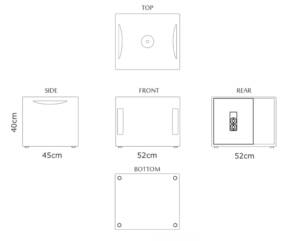

Technical Drawing
| Feature | Details |
|---|---|
| Type | COMPACT REFLEX SUB WOOFER SYSTEM 1000W AES 8 Ω 1X12″ |
| Frequency Response | ±5 dB 50 Hz ~ 180 Hz -10 dB 40 Hz |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling | 1000 W |
| Peak | 5000 W |
| Sensitivity 1W/1m | (93 dB@ 1 Watt 1 m) |
| Max SPL (AES) calc | 123 dB |
| Max SPL (PEAK) calc. | 130 dB |
| Nominal Dispersion (@ -6 dB) | 360° |
| Net Weight | 25 kg |
| Dimensions mm (±1 mm) (H x W x D) |
400 x 500 x 450mm |
